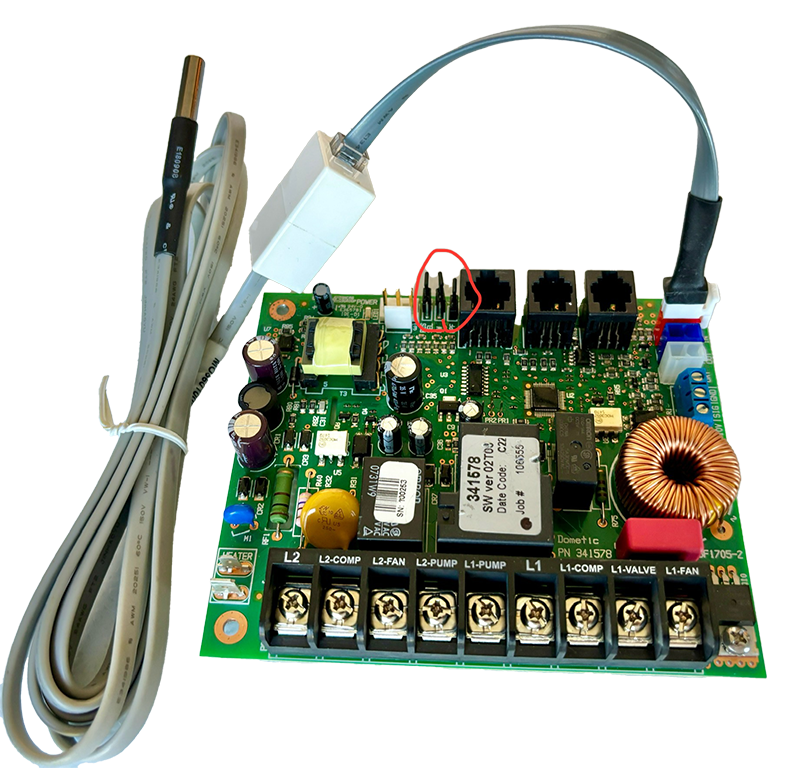

7-foot 10K water sensor used on marine air conditioners. RJ12 end. With some boards, you will need to add adapter 60-6005 to connect to the 2-pin molex port on the board. Be sure the board is set to use 10K sensors by removing the RES SEL JP5 jumper (see picture for clarification). Leave the jumper on one pin. As water sensors are typically used on chilled water air handlers, the CW JP1 jumper will also need to be pulled (see picture of the full board).
For 10K sensors, the RJ12 connector will have 6 pins (vs 4 pins for 3K sensors).
This water sensor will also work just fine for a 10K air sensor with a RJ12 connector.
Sensor only. Anything else seen in the pictures is for reference only.
Also known as Dometic 222130307, 331218, 341087 & M056010003.
Got questions? Email us. We are experts in marine HVAC.
